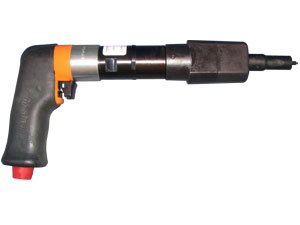

Hi shear Super HLA 1051

Straight Driver Assembly
with Extended Socket
and Super-Key™ (T-series)

Ordering Information

• Match pin and collar hexes with Super-Key Hex and Socket Hex.
• See table for corresponding complete driver assembly part number.
Part Number Example
HLA1051-312(X)-078-T

• Piece Break Down
Hi shear Super HLA 1051
Technical Data
Operating Pressure
90 PSIA
Horsepower Rating
0.70
Max Torque Rating (Motor)
300 in. lb. @ 90 PSIA
Air Consumption
22 SCFM
Socket Speed
250 RPM
Weight
3.8 lb.
Collar Driving Hex (Matches Socket Hex)
Pin Recess Hex (Matches Super-Key Hex)
Complete Driver Assy. Part No.
w/ HLS79 Series 2” Extended Socket
Collar Driving Hex
(Matches Socket Hex)
Pin
Recess Hex
(Matches Super-Key Hex)
Complete Driver Assy. Part No.
w/ HLS80 Series 2” Extended Socket
3/16”
1/16”
HLA1051-187-062T
3/16”
3/16”
HLA1051-187X-062T
7/32”
HLA1051-218-062T
7/32”
HLA1051-218X-062T
1/4”
HLA1051-250-062T
1/4”
HLA1051-250X-062T
9/32”
HLA1051-281-062T
9/32”
HLA1051-281X-062T
5/16”
HLA1051-312-062T
5/16”
HLA1051-312X-062T
11/32”
HLA1051-343-062T
11/32”
HLA1051-343X-062T
7/32”
HLA1051-218-078T
7/32”
HLA1051-218X-078T
1/4”
5/64”
HLA1051-250-078T
1/4”
1/4”
HLA1051-250X-078T
9/32”
HLA1051-281-078T
9/32”
HLA1051-281X-078T
5/16”
HLA1051-312-078T
5/16”
HLA1051-312X-078T
11/32”
HLA1051-343-078T
11/32”
HLA1051-343X-078T
3/8”
HLA1051-375-078T
3/8”
HLA1051-375X-078T
5/16”
3/32”
HLA1051-312-094T
5/16”
5/16”
HLA1051-312X-094T
11/32”
HLA1051-343-094T
11/32”
HLA1051-343X-094T
3/8”
HLA1051-375-094T
3/8”
HLA1051-375X-094T
7/16”
HLA1051-437-094T
7/16”
HLA1051-437X-094T
